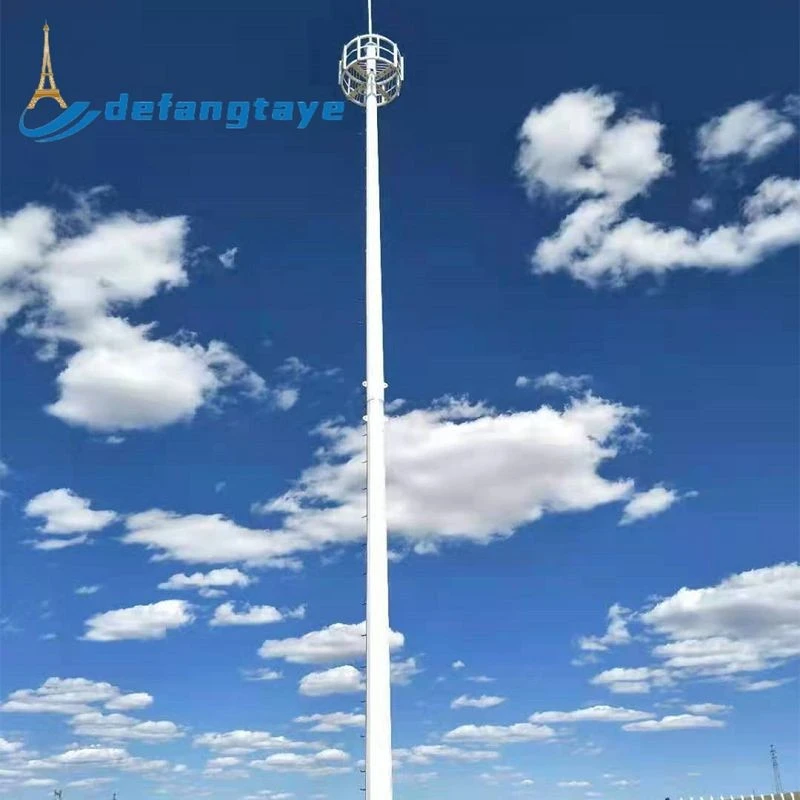

Single Pipe Lightning Protection Towe

The Single Pipe- Lightning Protection tower is mainly used for direct lightning protection, protecting facilities and personnel by receiving lightning and directing lightning current into the ground.

The structure of a Single Pipe- Lightning Protection tower can be summarized as: a multi-section conical steel pole connected by flanges, standing on a reinforced concrete foundation, with a lightning rod installed on the top, and equipped with ladders, platforms and other safety maintenance facilities, which discharge lightning current into the earth through a deeply buried grounding device.
1. Foundation

Function: Serves as the foundation for the entire tower, safely transferring and distributing all loads borne by the tower (including deadweight, wind loads, and lightning loads) into the subsoil, ensuring tower stability and preventing overturning.

Pile Foundation: Used in areas with poor geological conditions (such as soft soil or silt), piling is used to transfer loads to a deeper, more solid layer of soil.

Raft Foundation: Used in areas with particularly high loads or unusual geological conditions.

2. Tower

Function: Serves as the main support structure for the tower, ensuring it reaches the required height and supporting the lightning rod and other accessories at the top.

Construction: Constructed from multiple sections of tapered steel pipe connected by flanges. Each tower section is typically 6-12 meters long, facilitating transportation and on-site installation. The lower section of the tower has a larger diameter, while the upper section has a smaller diameter.

3. Lightning Rod

Function: Serves as the "antennae" of the lightning protection system, directly intercepting the lightning leader and attracting the lightning current.

Early discharge lightning rods (ESE): These claim to create a stronger upward leader, thereby expanding the protection range, but their effectiveness is subject to academic debate.

4. Grounding System

Function: Rapidly discharging the massive lightning current into the earth, it is a crucial component of a lightning protection system. Without good grounding, a lightning protection tower is useless.

Main components: a grounding body, a grounding down conductor, and a grounding grid.

1. Lightning Arrest: The tower's tall, needle-shaped structure attracts lightning, protecting the protected object from direct strikes.

2. Lightning Current Conduction: After lightning strikes, the lightning current flows through the tower's body and, via the down conductor, to the grounding device, ultimately discharging it safely into the earth.

3. Side Strike Protection: The tower also has a certain degree of side strike protection, providing some protection against side strikes.

Hengshui Defang Tower Industry Co., Ltd., located in Jing County, Hengshui City, Hebei Province, with registered capital of RMB 6.68 million, specializes in the manufacture of communication towers. Our main products include power towers, power structures, and communication towers. We also undertake the production, sales, and installation of a wide range of products, including monitoring towers, observation towers, lightning arrester towers, chimney towers, and fire training towers.

Since its establishment, the company has earned the trust and praise of customers with its high-quality products, continuously expanding its market reach and achieving strong sales both domestically and internationally. We sincerely welcome your inquiries and look forward to working with you.
